SCI Monitor is a communication inspection tool for in-vehicle electronic control units (ECUs).

SciMonitor4

  SCI Monitor 4 series

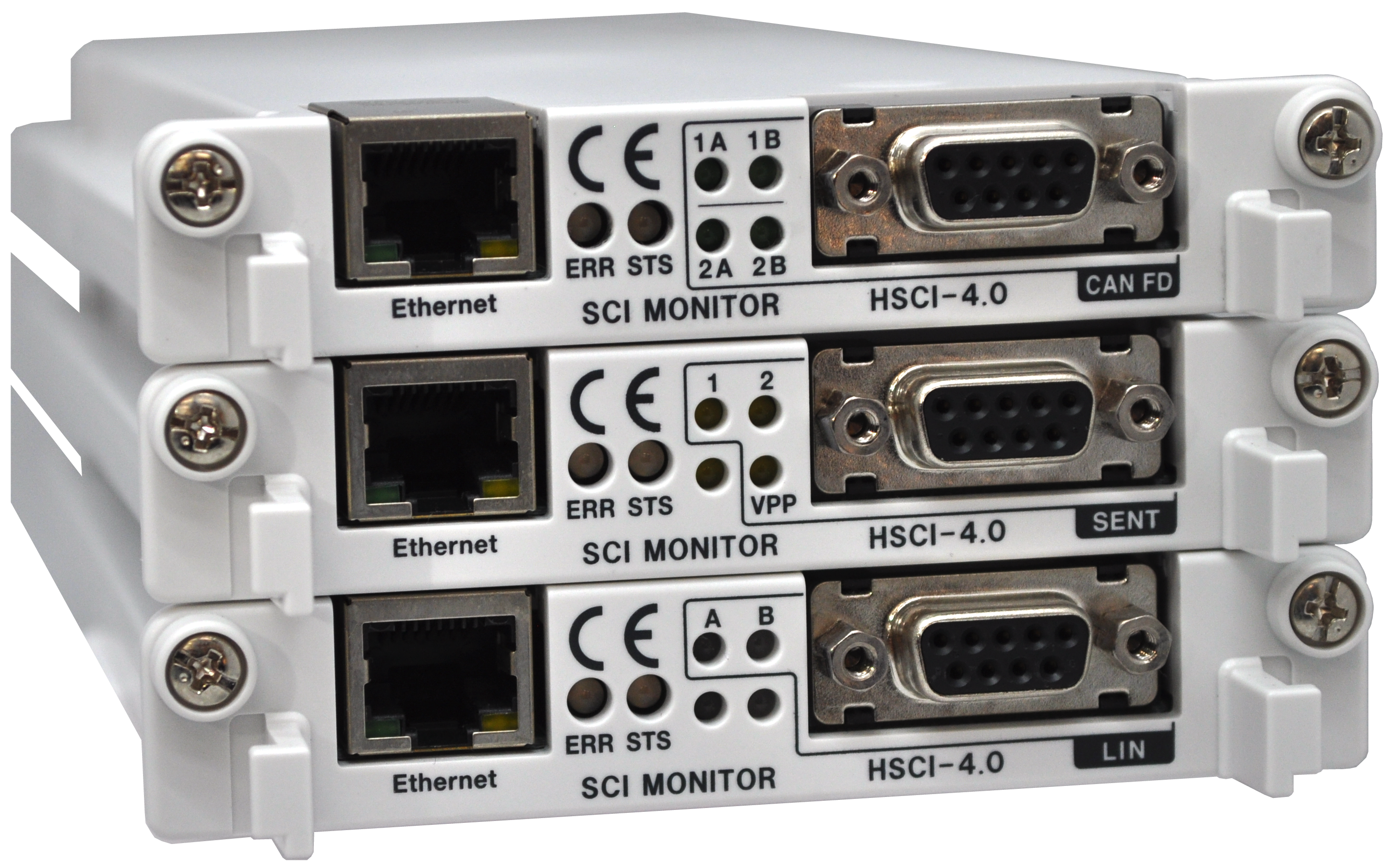

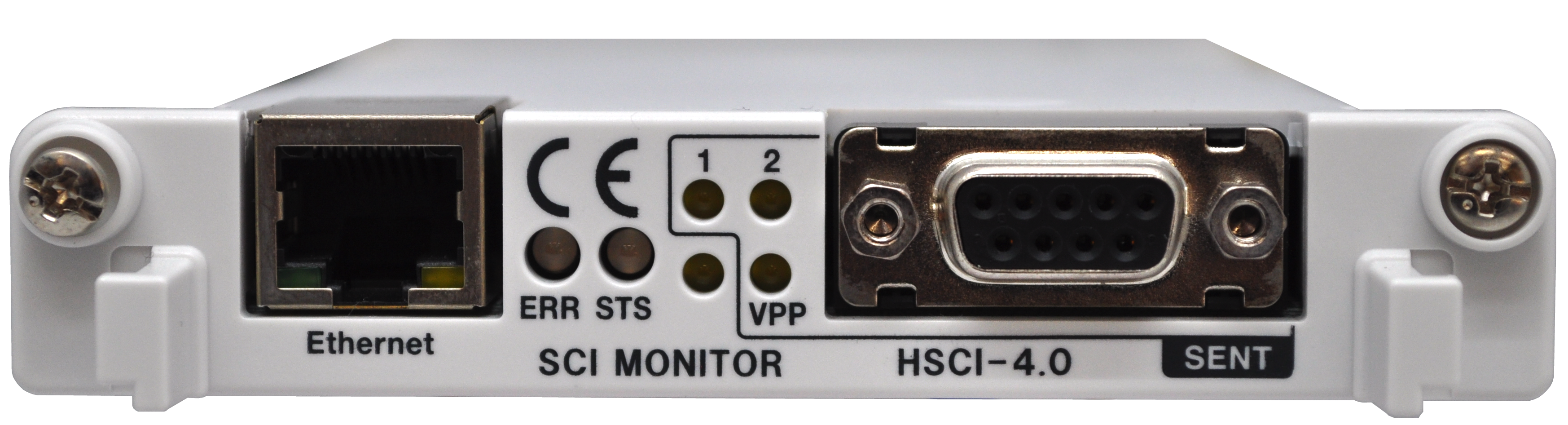

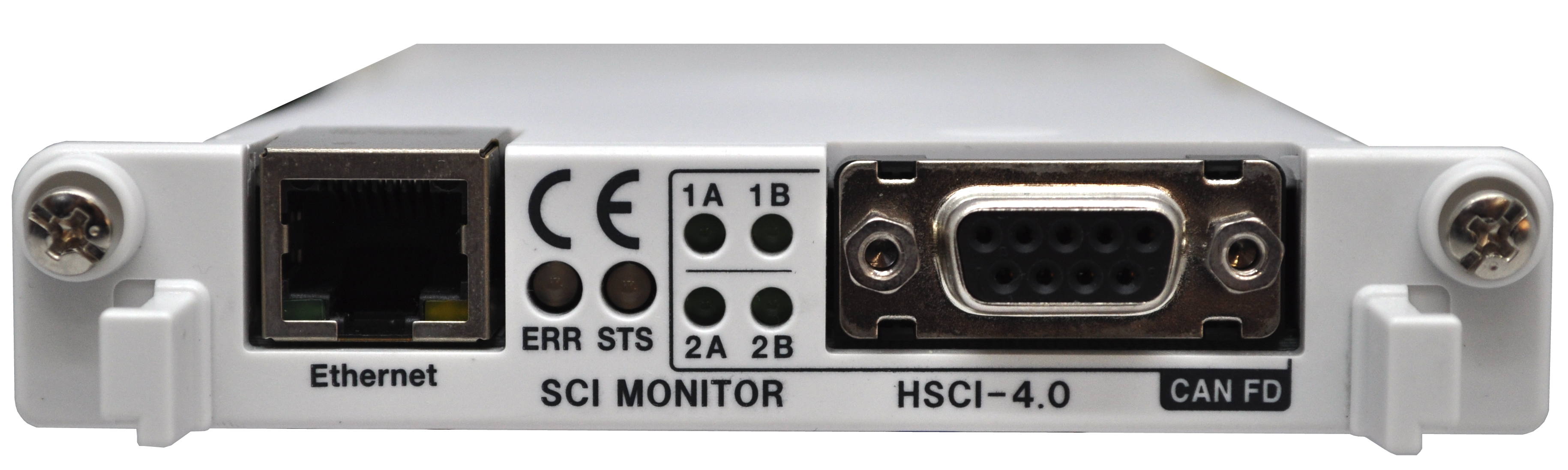

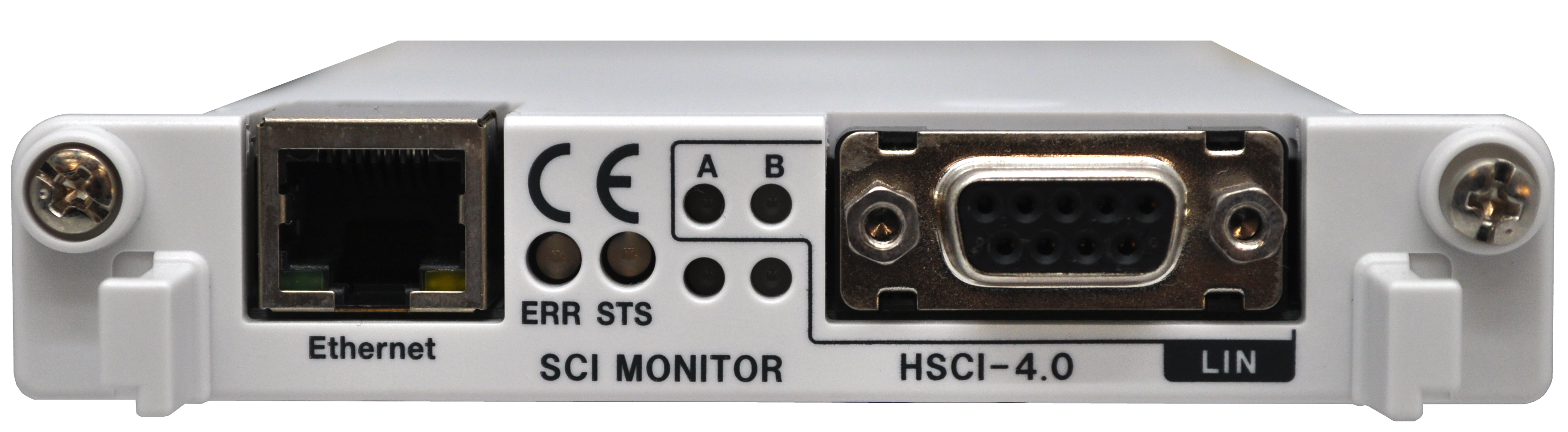

  HSCI-4.0-CANFD(Upper), HSCI-4.0-SENT(Middle), HSCI-4.0-LIN(Lower)

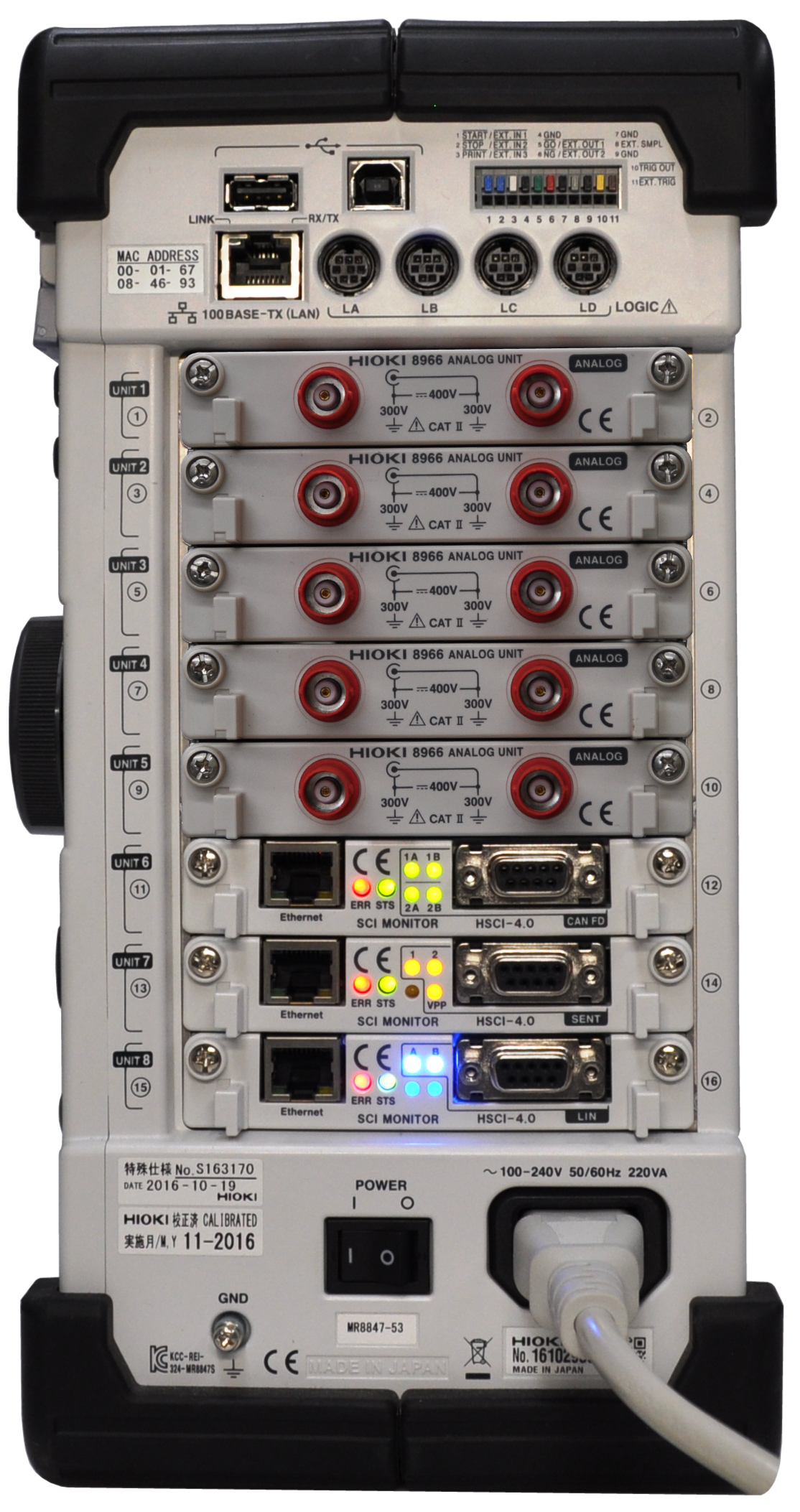

SCI Monitor 4 seriesExample of mounting on HIOKI MEMORY HiCORDER

Example of mounting on HIOKI MEMORY HiCORDER.

 SCI Monitor 4 series catalog.

  • HSCI4_catalog_en_201910.pdf

Feature


  • SCI Monitor 4 series is a communication inspection tool for in-vehicle electronic control units (ECUs).
  • Three communication units (CANFD, LIN, SENT) divided for each function.
  • High function and operability compatible with SCI Monitor 3 series.
  • Combination of units can be done freely as necessary.
  • CE mark conformity.

Model specifications


Specifications
Model
SCI Monitor4.0-CANFDSCI Monitor4.0-LINSCI Monitor4.0-SENT
HSCI-4.0-CANFDHSCI-4.0-LINHSCI-4.0-SENT
HSCI-4.0-CANFDHSCI-4.0-LINHSCI-4.0-SENT
Ethernet(10/100BASE-TX) x1port
Com.
Connector
D-Sub 9pin x1
CAN/CANFD
(Isolated)
Com.ch
x2ch
--
CAN speed
125k〜1Mbps
--
CANFD speed
500k〜8Mbps
--
Standard and
Extended format
--
LIN
(Isolated)
-LIN1.3/2.0/2.1
Conform
-
-Master,Slave x1ch-
-Com.speed
2,000~20,000bps
-
SENT
(Isolated)
--Complete conforms
to SAE J2716 SENT
--SENT in x2ch
SENT out x2ch
VPP
(Isolated)
--VPP out
OUTQA in/out
IndicatorCAN(4),STS,ERRLIN(2),STS,ERRSENT(2),VPP,STS,ERR
Voltage
Range
DC12V
Power is supplied from the HIOKI memory hicoder slot.
Or use a dedicated power adapter.
Power
Consumption
3.6VA(Max)
Operating
Temp.
5~40degC(There needs to be no dew condensation)
Dimension
(mm)
106(W)x19.8(H)x196.5(D)
WeightApprox 250g
CE
Compliant
Safety: EN61010-1
EMC: EN61326-1 ClassA
Mounting
Slot
MEMORY HiCORDER main unit slot made by HIOKI.
AccessoriesOperation-manual and PC side downloader soft included CD. (x1)
OptionDedicated power adapter (HSCI-4.0-PWADP)

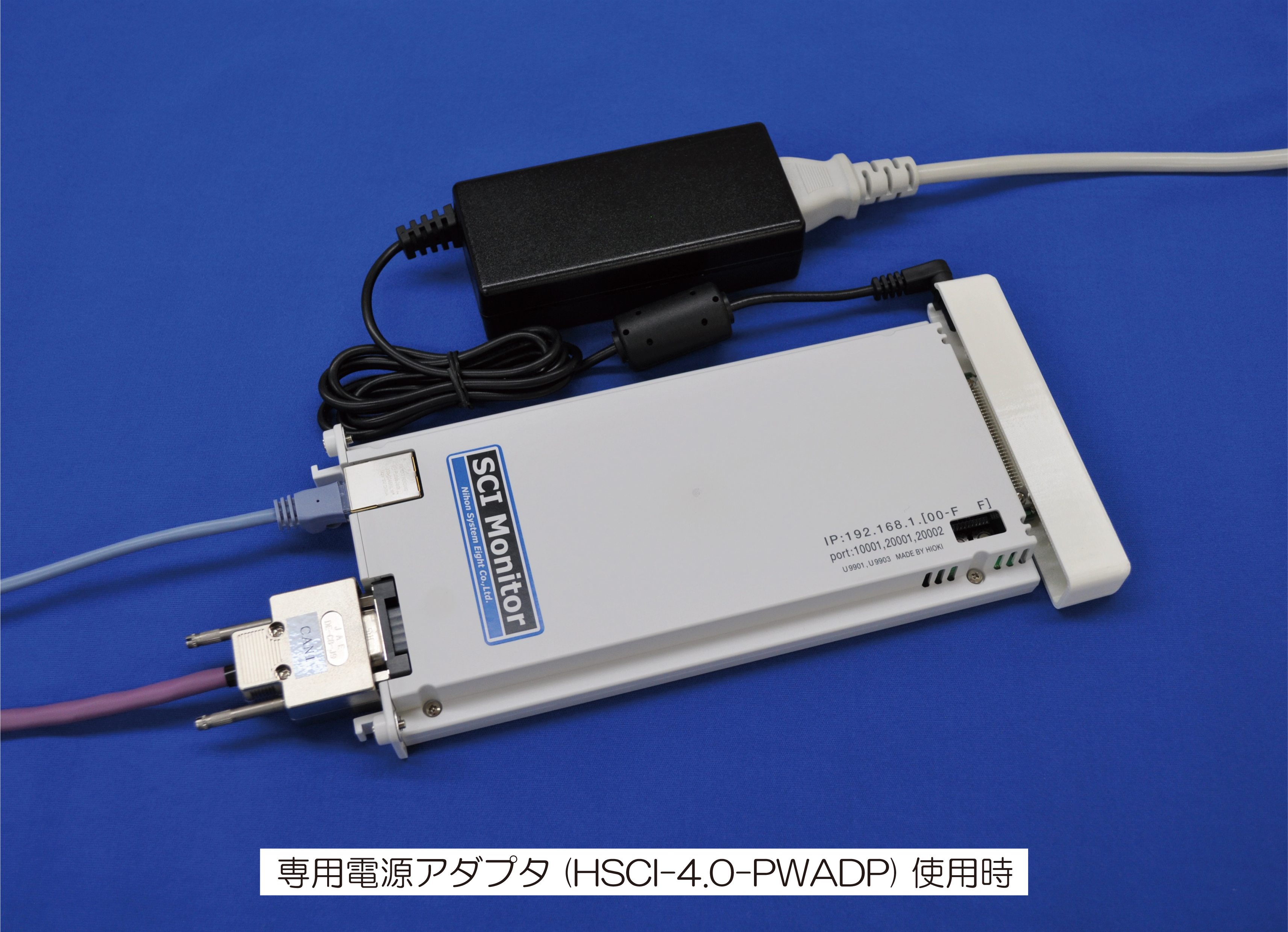

Using dedicated power adapter (HSCI-4.0-PWADP)

Using dedicated power adapter (HSCI-4.0-PWADP).

HIOKI MEMORY HiCORDER compatible with HSCI-4.0 series


  • 【Current model as of Sep. 2019】
    • MR8847-51
    • MR8847-52
    • MR8847-53
    • MR8827
    • MR8740
    • MR8740-50
    • MR8741
    • MR6000
    • MR6000-01
  • 【Discontinued model】
    • 8847     (Discontinued on May 20, 2011)
    • MR8847-01(Discontinued on Dec. 28, 2015)
    • MR8847-02(Same as above)
    • MR8847-03(Same as above)
