SCI Monitor is a communication inspection tool for in-vehicle electronic control units (ECUs).

SciMonitor3

      SCI Monitor 3 series

HSCI-3.97

 ALL in One+   FlexRay  CAN/CANFD  LIN  SENT  HSCI-3.97

HSCI-3.9-LiteDT2

 ALL in One   CAN/CANFD  LIN  SENT  HSCI-3.9-LiteDT2

 SCI Monitor 3 series catalog.

  • HSCI3_catalog_en_202109.pdf

Feature


  • The SCI Monitor 3 series is a communication inspection tool for in-vehicle electronic control units (ECUs).
  • All-in-one design that can support FlexRay, CAN / CANFD, LIN, SENT communication with one unit.
  • FlexRay, CAN, LIN, SENT communication can be freely operated by commands via Ethernet.
  • Can be used for multiple purposes such as functional inspection / evaluation / reprograming of ECUs and sensors.
  • With the CAN function, communication and physical quantity conversion by specifying labels are possible by downloading CAN database files (* .dbc, * .db).
  • The LIN function also implements a reprogramming function that uses diagnostic communication (diagnostic frame).
  • The SENT function is compliant with the "SAE J2716" SENT standard.

Function


  • Fast CPU implementation
    • For high-speed parallel communication processing, a high-speed CPU (SH4 manufactured by Renesas) is installed.
  • High-speed TCP/IP module implementation
    • A high-speed TCP/IP communication speed is realized by high-speed TCP/IP module without CPU intervention.
  • Firmware update function installed
    • Updated function enhancement etc can be performed easily with the included download software (PC application).
  • Rack mount type, Desktop type, CAN 17ch implementation model available
    • Rack mount type realized the smallest space mounting on the control rack with 1 U size space saving design.
    • Desktop type is a compact design that considers the use in desk, bench, interior space.
    • CAN 17ch model corresponds to multiple unit tests in aging test etc.
  • All communication circuits are designed for isolation
    • The communication circuit realizes interference free from the sample power supply system due to isolation between the communication channel and the enclosure.
  • FlexRay communication function
    • FlexRay communication parameter settings, FRAME settings, and PDU settings can be easily performed by downloading the FIBEX database file (xml).
  • CAN communication function
    • Corresponds to classical CAN, CANFD protocol.
    • By downloading database files (*. Dbc, *. Db), it is possible to communicate by label specification and physical quantity conversion.
    • Communication with ECU with built-in CCP / XCP driver is possible.
    • Monitoring function of CAN data enables abnormality detection when it falls outside specifications.
    • Supports various reprogramming protocols. Software rewriting on the ECU is possible.
    • Diagnosis communication is also supported. It is also possible to exchange using diagnostic protocol.
  • LIN communication function
    • Simultaneous processing of LIN master function and slave function.
    • Device evaluation test is possible with LIN master function.
    • ECU evaluation test is possible with the LIN slave function.
    • Diagnosis communication is also supported. It is also possible to exchange using diagnostic protocol.
  • SENT input, SENT output function
    • SENT input (4ch + 2ch) and SENT output (4ch + 2ch) are installed.
    • SENT device input function enables sensor device evaluation test.
    • ECU evaluation test is possible with SENT output function.
    • The physical quantity conversion is possible by the scaling function of the SENT input.
    • SENT input can be analog conversion output, frequency conversion output by real time conversion output function.
    • SENT output can output data outside various SENT standards by error injection function.
    • Compliant with SAE J 2716 SENT standard.
  • Record function of -CAN, LIN, SENT data loaded
    • Record function to record data in real time with time stamp.
    • CAN data can record up to 330,000 samples.
    • Many statistical processing commands of recorded data are implemented (maximum, minimum, average, standard deviation, transition).
  • Analog output, frequency input / output function installed
    • Equipped with analog output (4 ch), frequency output (4 ch), frequency measurement function (4 ch + 2 ch).
      (* Since the frequency input terminal is also used as the SENT input terminal, it can not be used simultaneously on the same channel)

Model specifications (1/6)

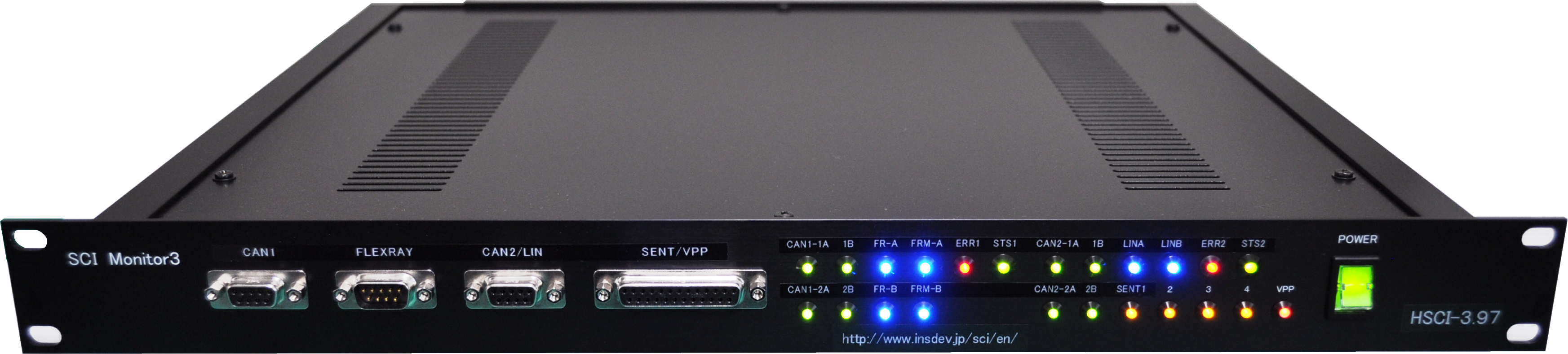

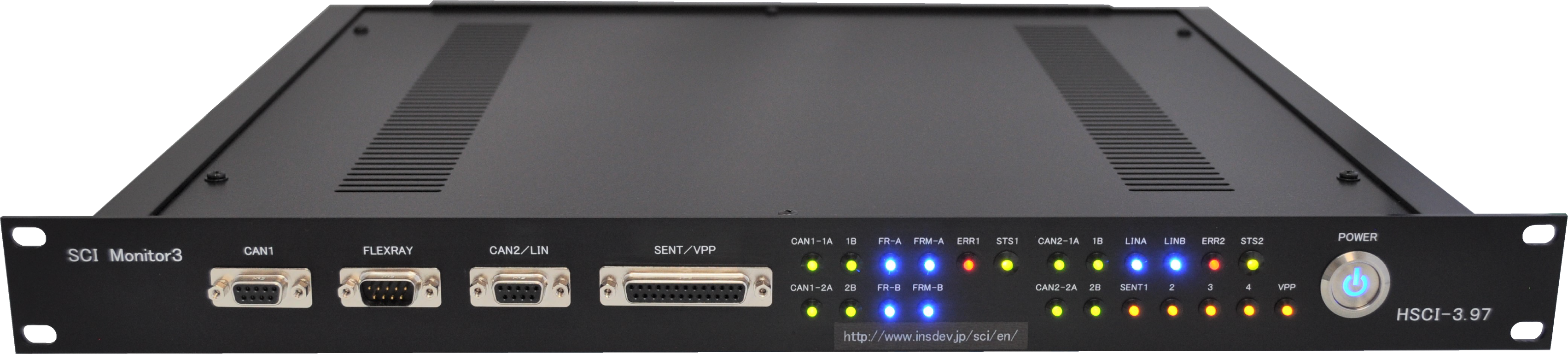

SpecificationsHSCI-3.97
Equipped with FlexRay,CAN/CANFD,LIN,SENT
1U Rack mount
HSCI-3.97
PC InterfaceEthernet (10/100BASE-TX) 4port
FlexRay2ch(FR-A,FR-B)(Isolated)
FlexRay Baud Rate: 10Mbps
CAN4ch(Isolated)
CAN Baud Rate: 125kbps/250kbps/500kbps/1Mbps
CANFD Baud Rate: 500kbps/1Mbps/2Mbps/4Mbps/5Mbps/8Mbps
CAN-ID: Std.(0x000~7FF), Ext.(0x00000000~1FFFFFFF)
LINLIN1.3/2.0/2.1 Conform
Master,Slave(Isolated) 1ch
Baud Rate(Master/Slave): 2,000~20,000bps
LIN-ID(0x00~3F),Checksum(Classic/Enhanced)
SENTCompliant with SAE J 2716 SENT standard.
Input(Isolated) 4ch, Output(Isolated) 4ch
Analog Out(0~5V) 4ch
Freq. Out(0~100KHz) 4ch
VPPVPP Out(Isolated), OUTQA In/Out(Isolated)
ConnectorCAN(2), FLEXRAY(2), CAN/LIN(2), SENT/VPP(2)
IndicatorCAN(8), FLEXRAY(4), LIN(2), SENT(4), VPP, STS, ERR
Voltage
Range
100~240VAC,50/60Hz
Power
Consumption
30VA(Max)
Operating
Temp.
5~40degC (There needs to be no dew condensation)
Dimension
(mm)
482.6(W) x 44(H) x 370(D)
WeightApprox 5kg
Standard
Accessory
AC power cable,
Operation-manual and PC side downloader soft storage CD


Model specifications (2/6)

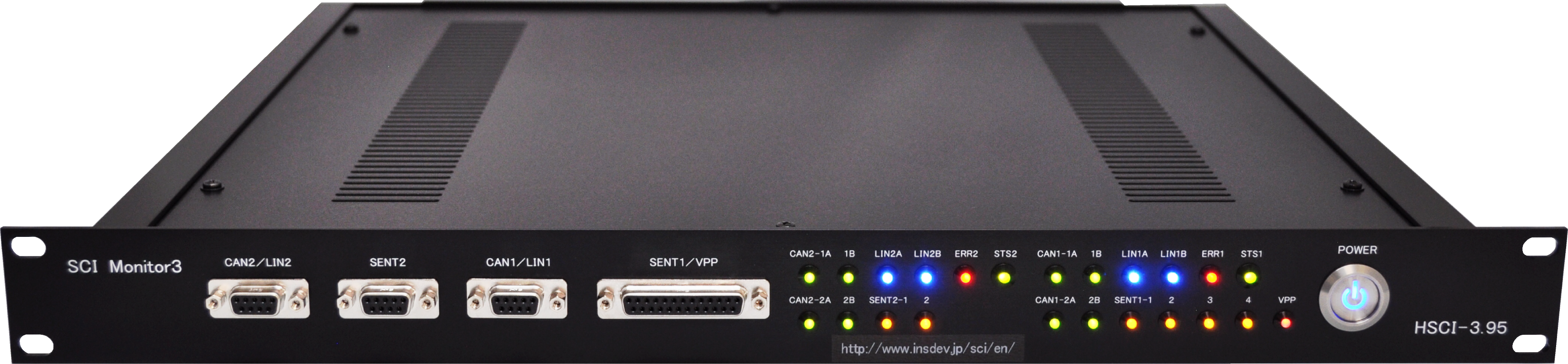

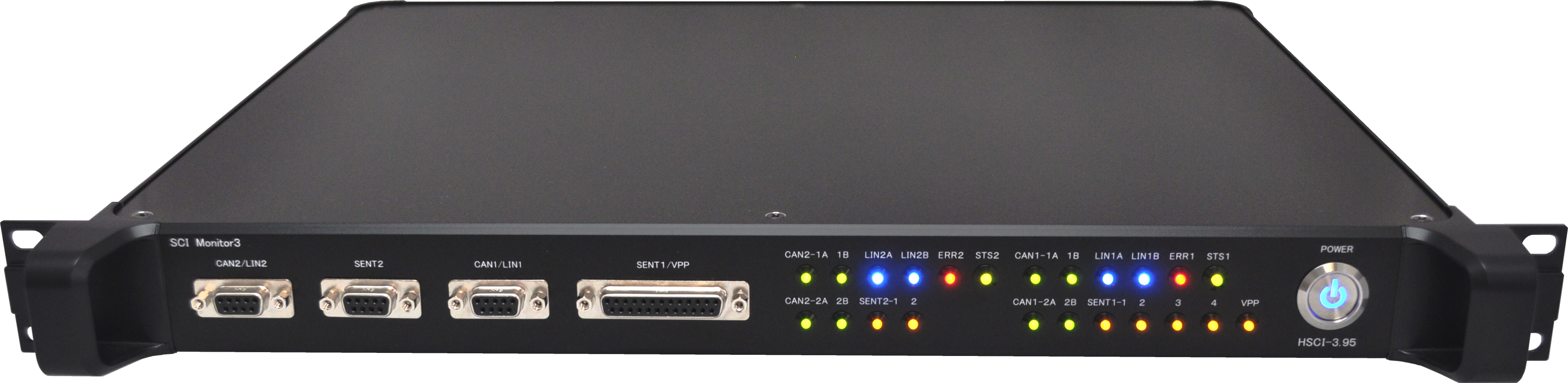

SpecificationsHSCI-3.95
Equipped with CAN/CANFD,LIN,SENT
1U Rack mount
HSCI-3.95
PC InterfaceEthernet (10/100BASE-TX) 4port
CAN4ch(Isolated)
CAN Baud Rate: 125kbps/250kbps/500kbps/1Mbps
CANFD Baud Rate: 500kbps/1Mbps/2Mbps/4Mbps/5Mbps/8Mbps
CAN-ID: Std.(0x000~7FF), Ext.(0x00000000~1FFFFFFF)
LINLIN1.3/2.0/2.1 Conform
Master,Slave(Isolated) 2ch
Baud Rate(Master/Slave): 2,000~20,000bps
LIN-ID(0x00~3F),Checksum(Classic/Enhanced)
SENTCompliant with SAE J 2716 SENT standard.
Input(Isolated) 6ch, Output(Isolated) 6ch
Analog Out(0~5V) 4ch
Freq. Out(0~100KHz) 4ch
VPPVPP Out(Isolated), OUTQA In/Out(Isolated)
ConnectorCAN/LIN(4), SENT/VPP(2), SENT(2)
IndicatorCAN(8), LIN(4), SENT(6), VPP, STS, ERR, PWR
Voltage
Range
100~240VAC,50/60Hz
Power
Consumption
30VA(Max)
Operating
Temp.
5~40degC (There needs to be no dew condensation)
Dimension
(mm)
482.6(W) x 44(H) x 370(D)
WeightApprox 5kg
Standard
Accessory
AC power cable,
Operation-manual and PC side downloader soft storage CD


Model specifications (3/6)

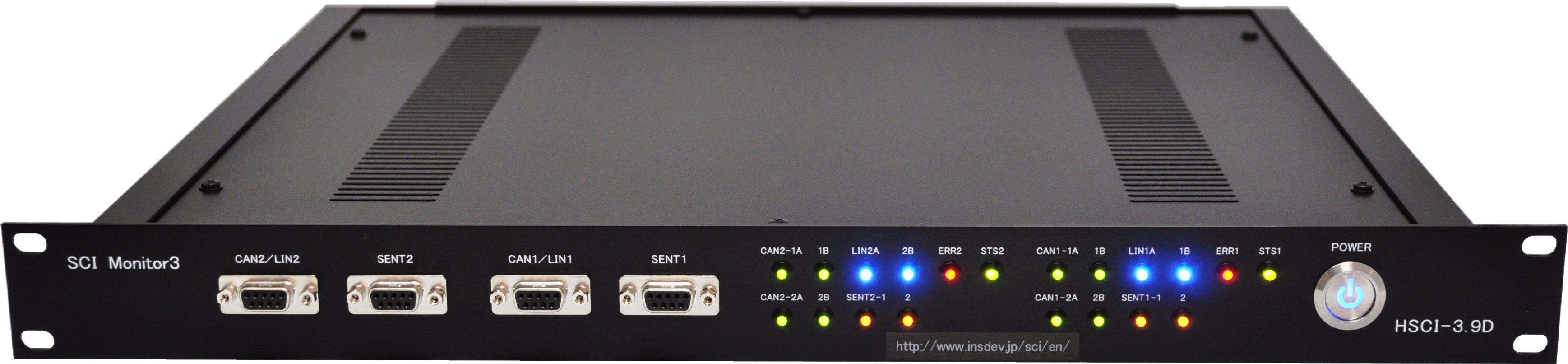

SpecificationsHSCI-3.9-Dual
Equipped with CAN/CANFD,LIN,SENT
1U Rack mount
HSCI-3.9-Dual
PC InterfaceEthernet (10/100BASE-TX) 4port
CAN4ch(Isolated)
CAN Baud Rate: 125kbps/250kbps/500kbps/1Mbps
CANFD Baud Rate: 500kbps/1Mbps/2Mbps/4Mbps/5Mbps/8Mbps
CAN-ID: Std.(0x000~7FF), Ext.(0x00000000~1FFFFFFF)
LINLIN1.3/2.0/2.1 Conform
Master,Slave(Isolated) 2ch
Baud Rate(Master/Slave): 2,000~20,000bps
LIN-ID(0x00~3F),Checksum(Classic/Enhanced)
SENTCompliant with SAE J 2716 SENT standard.
Input(Isolated) 4ch, Output(Isolated) 4ch
ConnectorCAN/LIN(4), SENT(4)
IndicatorCAN(8), LIN(4), SENT(4), STS, ERR
Voltage
Range
100~240VAC,50/60Hz
Power
Consumption
30VA(Max)
Operating
Temp.
5~40degC (There needs to be no dew condensation)
Dimension
(mm)
482.6(W) x 44(H) x 370(D)
WeightApprox 5kg
Standard
Accessory
AC power cable,
Operation-manual and PC side downloader soft storage CD


Model specifications (4/6)


SpecificationsHSCI-3.9-LiteDT2
Equipped with CAN/CANFD,LIN,SENT
DeskTop (with tilt legs)
         HSCI-3.9-LiteDT2
PC InterfaceEthernet (10/100BASE-TX) 2port
CAN2ch(Isolated)
CAN Baud Rate: 125kbps/250kbps/500kbps/1Mbps
CANFD Baud Rate: 500kbps/1Mbps/2Mbps/4Mbps/5Mbps/8Mbps
CAN-ID: Std.(0x000~7FF), Ext.(0x00000000~1FFFFFFF)
LINLIN1.3/2.0/2.1 Conform
Master,Slave(Isolated) 1ch
Baud Rate(Master/Slave): 2,000~20,000bps
LIN-ID(0x00~3F),Checksum(Classic/Enhanced)
SENTCompliant with SAE J 2716 SENT standard.
Input(Isolated) 4ch, Output(Isolated) 4ch
Analog Out(0~5V) 4ch
Freq. Out(0~100KHz) 4ch
VPPVPP Out(Isolated), OUTQA In/Out(Isolated)
ConnectorCAN/LIN(2), SENT/VPP(2)
IndicatorCAN(4), LIN(2), SENT(4), VPP, STS, ERR
Voltage
Range
100~240VAC,50/60Hz
Power
Consumption
20VA(Max)
Operating
Temp.
5~40degC (There needs to be no dew condensation)
Dimension
(mm)
244(W) x 64(H) x 350(D) Excluding tilt legs
WeightApprox 3kg
Standard
Accessory
AC power cable,
Operation-manual and PC side downloader soft storage CD


Model specifications (5/6)

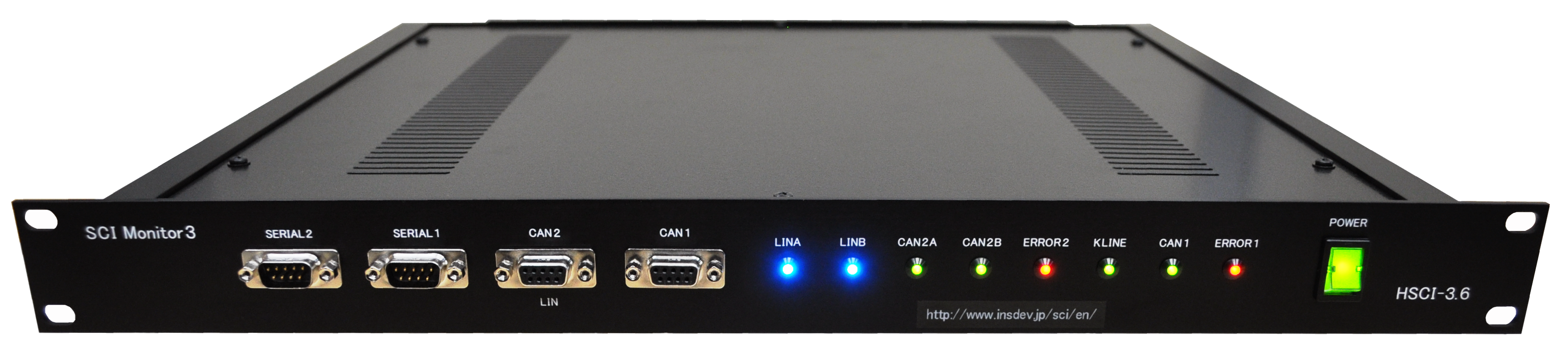

SpecificationsHSCI-3.6
Equipped with CAN,LIN,K-LINE
1U Rack mount
HSCI-3.6
PC InterfaceEthernet (10/100BASE-TX) 3port
GP-IB
Serial 2port
CAN2ch(Isolated)
CAN Baud Rate: 125kbps/250kbps/500Kbps/1Mbps
CAN-ID: Std.(0x000〜7FF), Ext.(0x00000000〜1FFFFFFF)
LINLIN1.3/2.0/2.1 Conform
Master,Slave(Isolated) 1ch
Baud Rate(Master,Slave): 2,000〜20,000bps
LIN-ID(0x00〜3F), Checksum(Classic/Enhanced)
K-LINE1ch(Isolated)
Baud Rate: 100〜39,990bps
Volt-Level: OpenCollector, 0〜5V, 0〜VB
ConnectorCAN/LIN(2), CAN(2), KLINE(1)
IndicatorCAN(2), LIN(2), KLINE(1), ERROR(2)
Voltage
Range
AC85〜132V, 50/60Hz
Power
Consumption
30VA(Max)
Operating
Temp.
5〜40degC (There needs to be no dew condensation)
Dimension
(mm)
482.6(W) x 44(H) x 370(D)
WeightApprox 5kg
Standard
Accessory
AC power cable,
Operation-manual and PC side downloader soft storage CD


Model specifications (6/6)

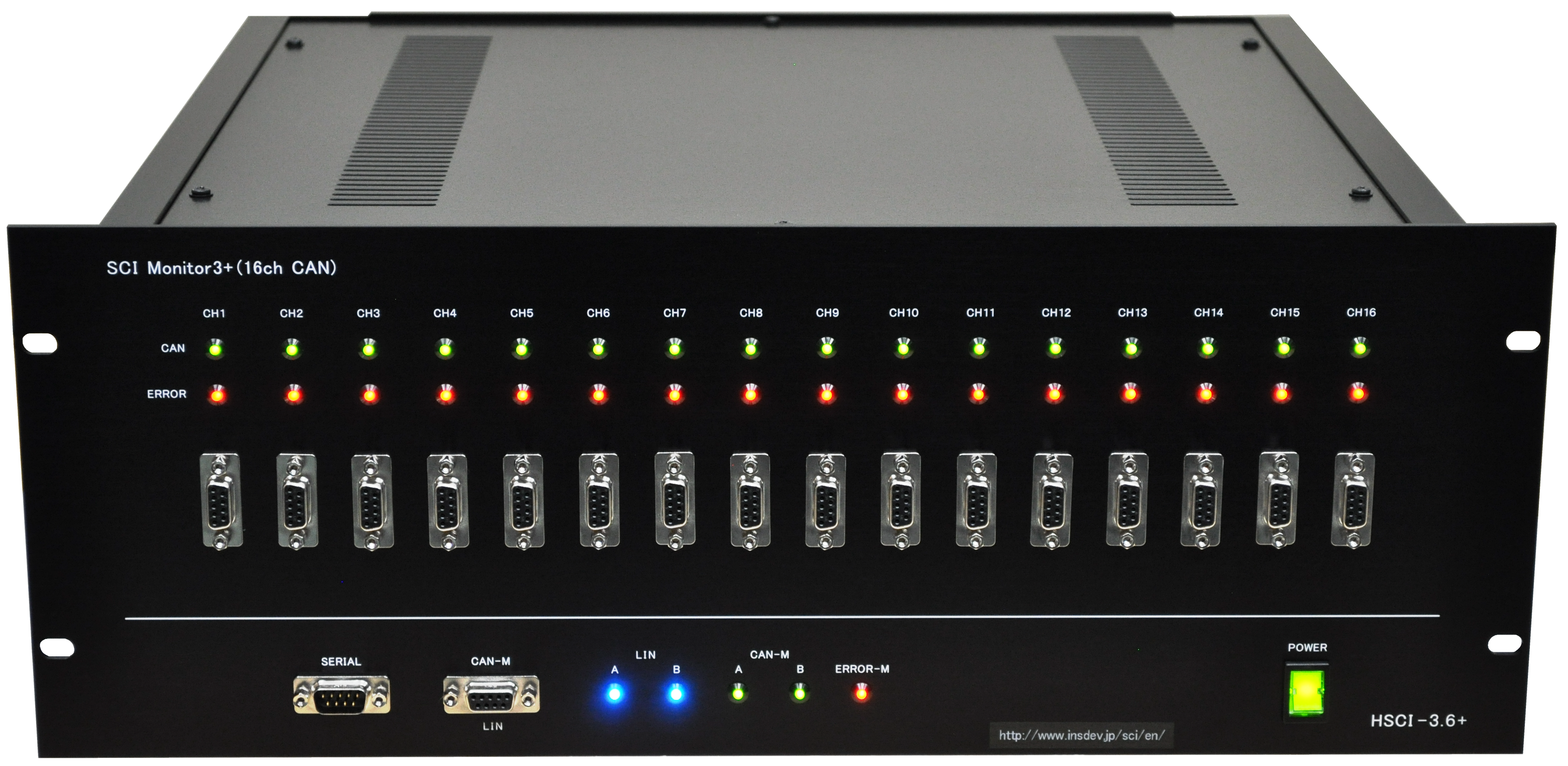

SpecificationsHSCI-3.6+(CAN17ch)
Equipped with CAN,LIN,DOUT
4U Rack mount
HSCI-3.6+
PC InterfaceEthernet (10/100BASE-TX) 2port
GP-IB(Optional)
Serial 1port
CAN17ch(Isolated)
CAN Baud Rate: 125kbps/250kbps/500Kbps/1Mbps
CAN-ID: Std.(0x000〜7FF), Ext.(0x00000000〜1FFFFFFF)
LINLIN1.3/2.0/2.1 Conform
Master,Slave(Isolated) 1ch
Baud Rate(Master,Slave): 2,000〜20,000bps
LIN-ID(0x00〜3F), Checksum(Classic/Enhanced)
DOUT16bit OpenCollector
ConnectorCAN/LIN(2), CAN(16), DOUT(1)
IndicatorCAN(18), LIN(2), ERROR(17)
Voltage
Range
AC85〜132V, 50/60Hz
Power
Consumption
40VA(Max)
Operating
Temp.
5〜40degC (There needs to be no dew condensation)
Dimension
(mm)
482.6(W) x 177(H) x 370(D)
WeightApprox 6kg
Standard
Accessory
AC power cable,
Operation-manual and PC side downloader soft storage CD
